Inclined Platform Lift


Inclined Platform Lifts (IPL) allows for barrier free, up and down transportation, for a person in wheelchair on a flight of straight stairs. A rail system is mounted alongside the stairs to guide the movement of the inclined moving platform. These lifts are manufactured as per CSA-B355. This lift is well suited to environments where an elevator or vertical lift cannot be easily accommodated, due to limited space and hence this accessibility lift travels on the top of the flight of stairs.

Standard Product Features with Available Options are:

  • Applied code: CAN/CSA-B355-09
  • Load capacity: 250 kg (550 lb)
  • Speed: 0.10 m/s (20 fpm)



Platform size:

720 mm wide (28”) x 900 (35”) mm long

Optional Platform size:

775 mm wide (30.5”) x 1250 mm (49”) long



Key Installation Requirements

  • Step width to be minimum required in line with building and fire code
  • Footprint from the initial step: overall width to be 1194 mm (47”) x length of 1829 mm (72”) (may vary and to be as per the selected platform size)
  • When safety arm is operated, vertical space of 1829 (72”) space should be made available
  • Head room clearance where the platform is positioned for boarding shall be not less than 2000 mm (79”)
  • It should be ensured by a structure engineer that the supporting staircase or the side wall are adequate to support the loads imposed by the lift equipment.

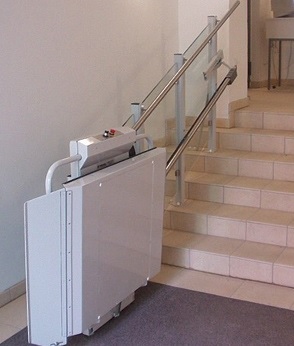

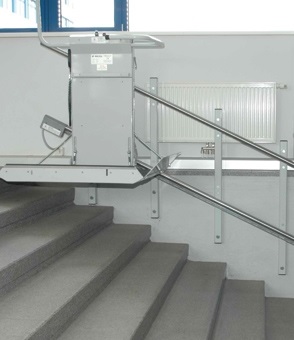

  • Rail of the Inclined Platform Lift could be secured to the sidewall or anchoring posts could be secured to the staircase and the rail of the lift to be tied to these anchoring posts. Structural engineer to determine


Drive system:

  • Rack & Pinion
  • Motor: 24 V, 0.67 Hp
  • Power supply: 110 VAC, 60Hz, Single Phase


Safeties:

  • Non-skid platform,
  • Emergency stop button on platform
  • Underpan obstruction sensors
  • manual lowering device
